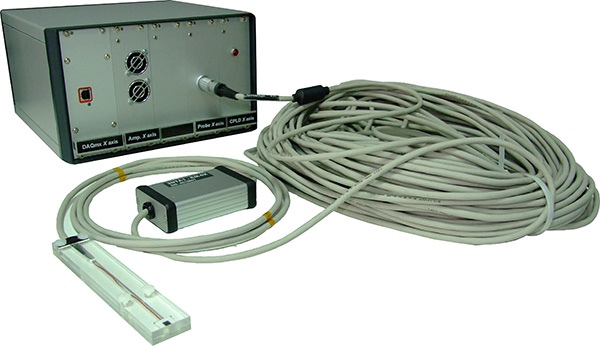

3NTA2 3-axis Nano-Teslameter

  • Measurement range: 1nT-0.1mT
  • Measurement resolution: 0.5nT
  • Measurement accuracy: <1%
  • 1-, 2-, or 3-axis AMR probe
  • Field sensitive volume: 1.25 x 0.25 x 0.5 mm

Add to Inquiry

KEY FEATURES

  • Measurement range 1nT-0.1mT
  • Measurement resolution 0.5nT
  • Measurement accuracy <1%
  • f-bandwidth: DC
  • 1-, 2-, or 3-axis AMR probe
  • Well defined position of sensitive area
  • Up to 40m cable



TYPICAL APPLICATIONS

  • Monitoring and active cancelation of environmental DC magnetic fields
  • Measuring stray DC magnetic fields of electrical machines
  • Directional DC drilling

For more information please contact

Nanoteslameter and Nanovolt-amplifier presented at IMMW19
